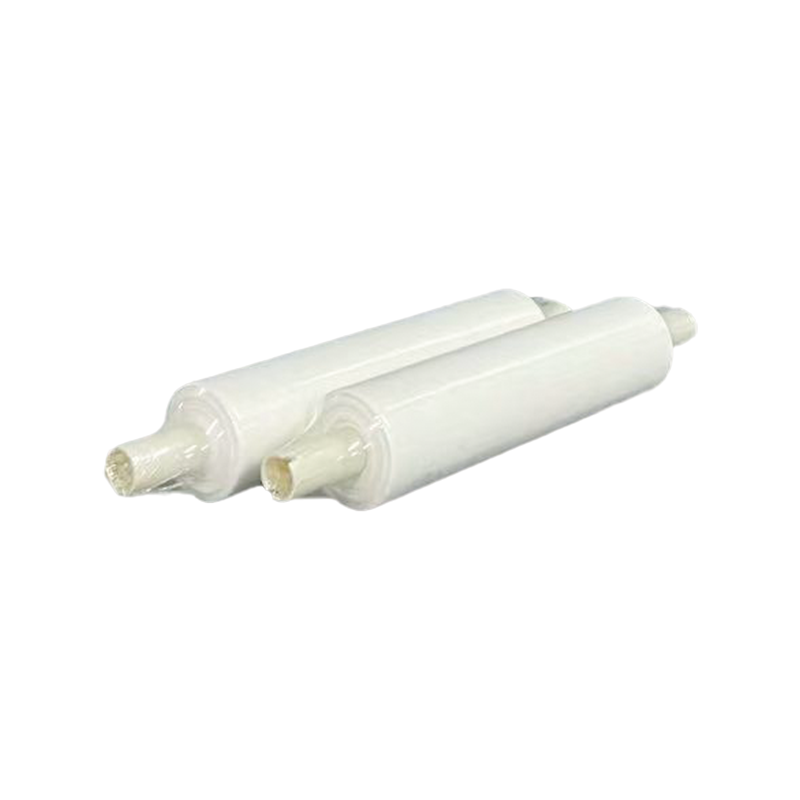

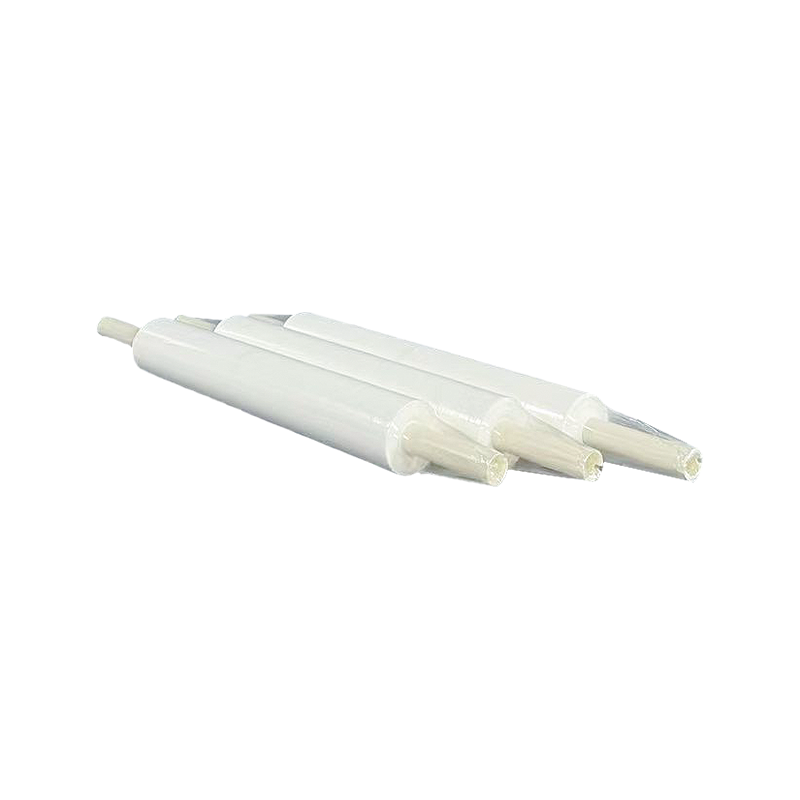

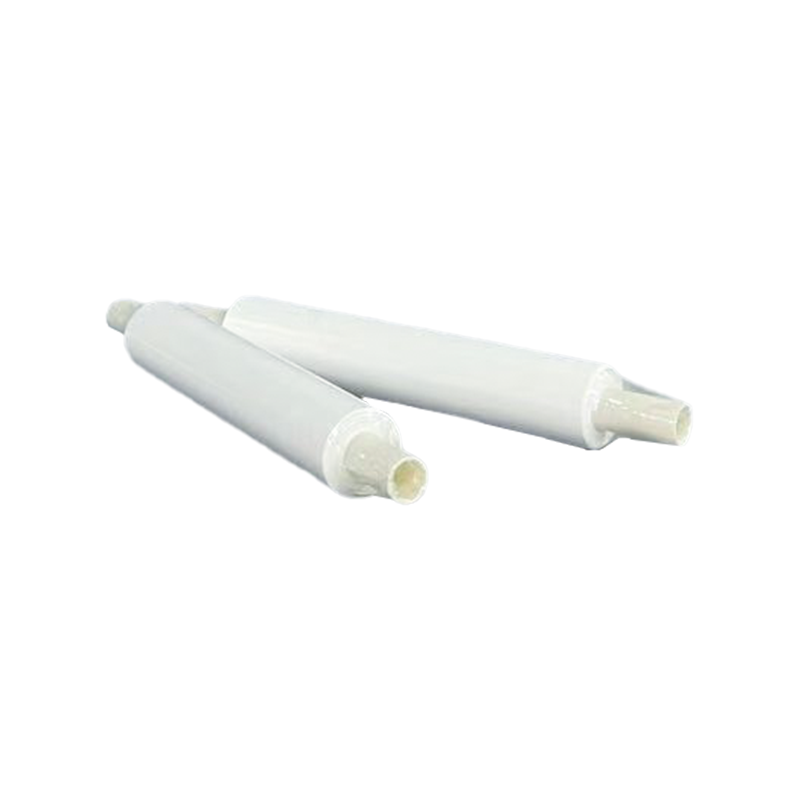

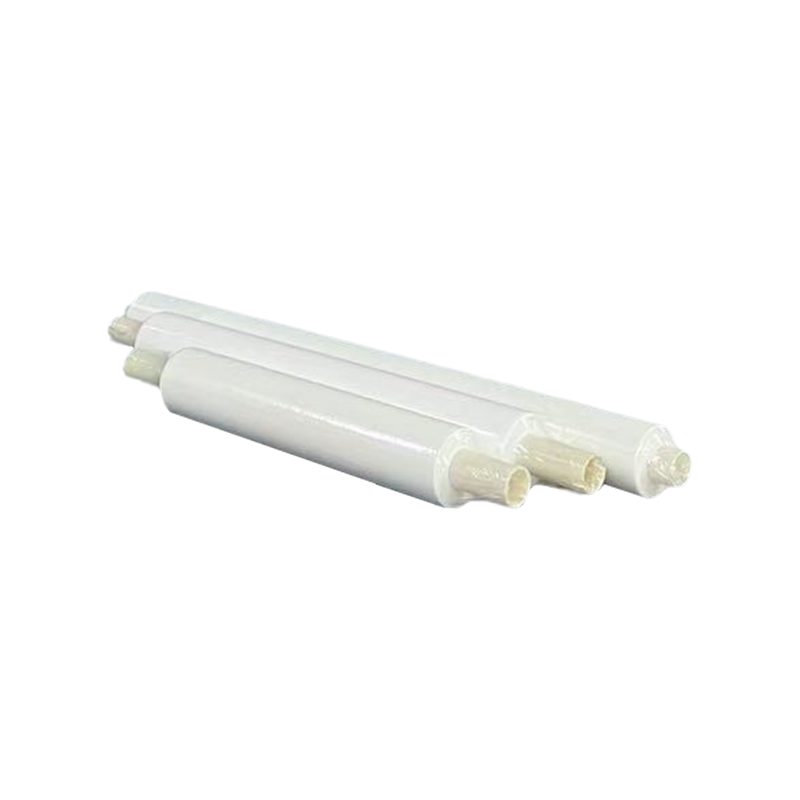

An SMT automatic stencil wiper roll is a specialized component used in the SMT manufacturing process, primarily within the stencil printing stage. Its primary purpose is to maintain the cleanliness and functionality of the stencil, which is a critical element in the precise application of solder paste onto printed circuit boards (PCBs).
Here's a breakdown of its role and purpose:
Stencil Cleaning: During the SMT process, solder paste is applied to PCBs through a stencil, which has openings (apertures) corresponding to the component placement areas on the board. To ensure accurate and consistent solder paste deposition, the stencil must be free of any contaminants or residual solder paste from previous applications.
Automatic Cleaning: The SMT automatic stencil wiper roll is a part of a machine or system that automates the cleaning process. It is designed to remove solder paste residues, flux, and other contaminants from both the top and bottom sides of the stencil.
Efficiency and Consistency: An automatic stencil wiper roll offers several advantages over manual cleaning methods. It provides a more efficient and consistent cleaning process, reducing the risk of human error and ensuring that the stencil is thoroughly cleaned before each use.
Downtime Reduction: By automating the cleaning process, SMT manufacturers can minimize downtime between production runs. This is crucial in high-volume manufacturing environments where rapid PCB assembly is required.
Maintaining Print Quality: A clean stencil is essential for achieving high-quality solder paste printing, which, in turn, affects the solder joint quality and overall reliability of electronic components on the PCB.
Longevity of Stencil: Regular and effective cleaning with an automatic stencil wiper roll can extend the lifespan of the stencil, reducing the need for frequent stencil replacement and saving on manufacturing costs.
Reduced Waste: Proper cleaning with an automatic system minimizes the waste of solder paste and cleaning materials, contributing to cost savings and environmental considerations.
SMT automatic stencil wiper roll plays a vital role in SMT manufacturing by automating the cleaning process for stencils used in solder paste application. Its primary purpose is to ensure that the stencil remains clean, free of contaminants, and ready for precise and reliable solder paste deposition on PCBs. This contributes to efficient production, high-quality solder joints, and reduced manufacturing costs.
